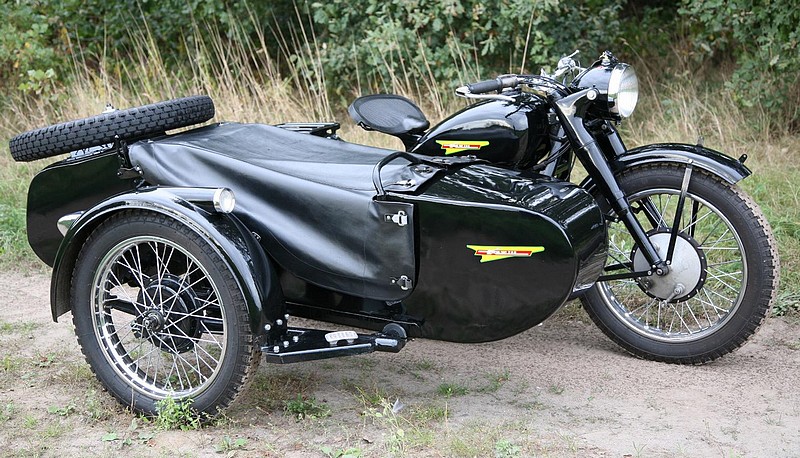

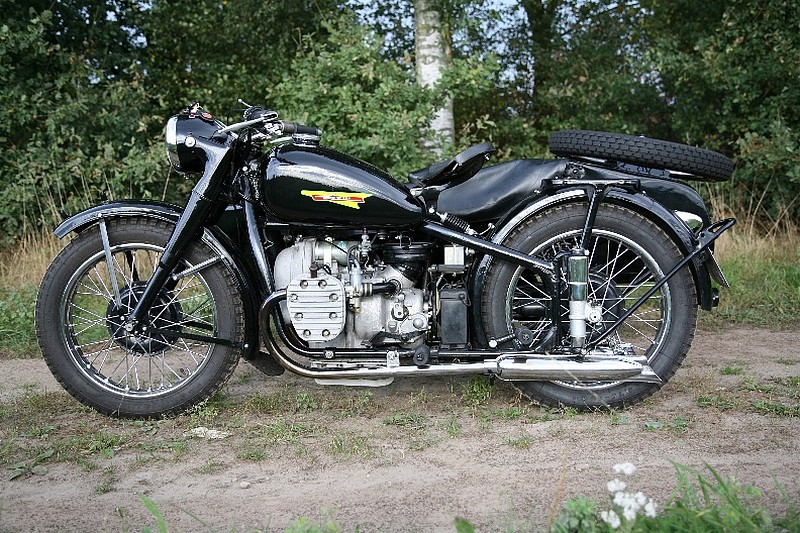

Chang Jiang M1

pictures from

Dimensions LxWxH (mm) 2400x1580x100 LxWxH (mm) 2400x1580x100
Dry weight with sidecar 350kg350kg
Max. load with sidecar 3 persons + 100kg3 persons + 100kg

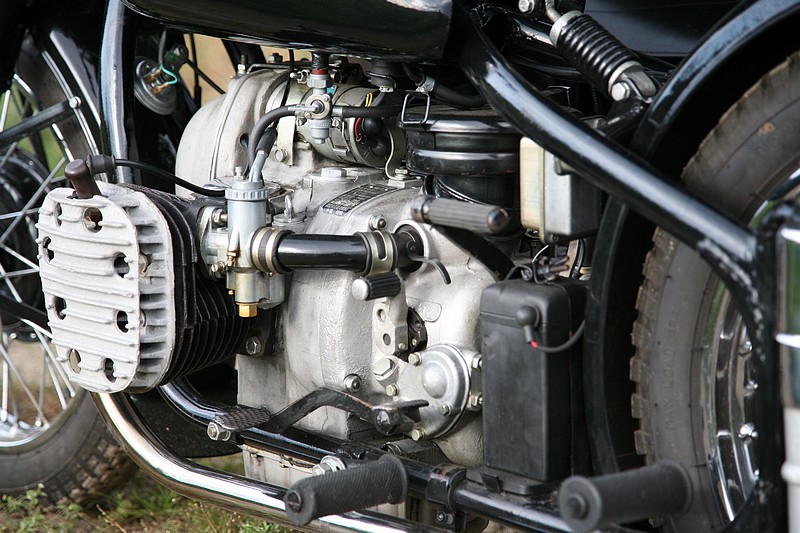

Engine 4 stroke, twin cylinder, air cooled.4 stroke, twin cylinder, air cooled.
Capacity (cc) 746746
Max Power 22h.p / 4500-4800r/min24h.p / 4200-4800r/min
Max Speed 90Km/h90Km/h
Fuel consumption 7 Lit /100km7 Lit /100km
Fuel tank-capacity 24 Lit24 Lit
Electrical system 6 volt12 volt
Starter kickkick or electric
Clutch dry double diskdry double disk
Drive shaft with u/v jointshaft with u/v joint
Transmission 4 forward gears4 forward gears 1 reverse
Quantity 12 sets in one 40' container12 sets in one 40' container
